IBest

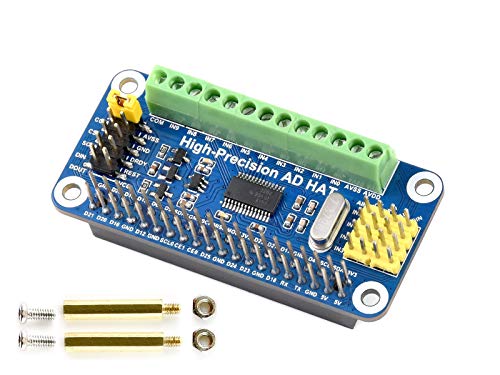

High-Precision Ad Hat Compatible With Raspberry Pi 4B/3B+/3B/2B/Zero/W/Zero Wh, Jetson Nano Expansion Board With Ads1263 10-Ch 32-Bit High Precision A
High-Precision AD HAT For Raspberry Pi and Jetson Nano ,Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max) Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
